Model CB-30 Liquid Nitrogen Deflashing System
The ZIRCO-BLAST Cryogenic Deflashing System is specifically designed for the deflashing of precision rubber parts, engineering plastic parts and precision die cast parts (zinc, magnesium and any other metals). This unit can be used with a liquid nitrogen tank, a portable tank or dewar. Mobile and easily relocated. This is the ideal machine for cell production. This machine can also be used for ambient deflashing.
Model CB-30 Liquid Nitrogen Deflashing System
  • Low Media Consumption
  • Precision rubber components - NR to Silicon Rubber
  • Low Noise Level (superior sound insulation)
  • Low Nitrogen Usage
  • Simple Electrical Controls
  • High Efficiency Blast Wheel
  • Excellent Separation System
  • Heated Door Seal
  • Safety Interlocks
  • Easy Media Change Over
  • Simple and Very Low maintenance
  • Easy Clean-up
Benefits
  • STAINLESS STEEL BASE SIEVING MACHINE.
  • SAFETY FEATURES - SAFETY CONTROLLER / EMERGENCY STOP & OTHER FEATURES MEETING EUROPE & U.S. REQUIREMENT.
  • SOLID / HIGH DENSITY PU INSULATION FOR COLD CONTAINMENT AROUND INNER BLAST CHAMBER & MAIN DOOR.
  • LOW NITROGEN GAS USAGE.
  • SOLID DOOR HANDLE.
  • BETTER SOUND INSULATION.
  • SPECIAL DESIGN BASKET( LOADING & UNLOADING MADE EASIER ).
  • REPUTABLE ELECTRICAL / ELECTRONIC COMPONENTS & MACHINE PARTS.
  • PRODUCTION CYCLE COUNTER & HOUR METER.
CB-30 Features
  • No Screw or Conveyors
  • PLC Controls
  • Maximum Cooling Temperature - 155 Deg C
  • Weight 800 kg
  • Solid Construction and 80mm Insulated Walls to reduce Nitrogen usage
  • 7,000 RPM Blast Wheel - Variable Speed
  • Variable Basket Speed
  • 30 Litres Effective Capacity
  • Coarse and Fine Flash Removal Contained
Compressed Air Requirements
  • Air Supply for Safety Interlocks and Blow Down
  • Minimum pressure - 5 Bars
Electrical
  • 3 ph., 380-460VAC, 50/60 Hz
  • PLC Controls
  • All Reputable Electrical/Electronic Components, which are commonly available
Mechanical
  • All Stainless Steel Construction - Chamber, Machine Frame and Door Panels
  • Completely Enclosed System
  • Direct Drive Blast Wheel
  • Easy Clean-up
  • Solid Door Construction
Optional Colour Touch Screen Model
  • Ability to store pre-programmed menu
  • Supervisor code to setup and alter parameters
  • Maximum Cooling Temperature - 155 Deg C
  • Easy Menu Selection with warnings on media size to use
Zirco-Blast Products & Services Include
  • Plastic Blast Cleaning Media
  • Cryogenic Deflashing Media
  • Mould Cleaning Cabinets
  • Cryogenic Tumblers
  • Custom Deflashing Services

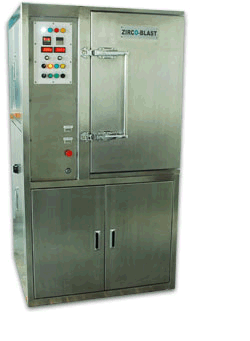

New Look (stainless steel finish)
